πŸ“£ Using Arduino at Elice

Installing the Elice Arduino Agent Program ​

Please download the file attached to the bulletin board. Click the link below :)
πŸ‘‰ Program Download Link​

Make sure to click the downloaded file to extract it!

Running the Arduino Agent Program ​

Let's check if the downloaded Arduino agent program runs well! Search for "arduino agent" in the search bar and run the exe file.

If you see English text in the black window as shown in the image below, it means it has been downloaded successfully 😊

Checking Arduino Operation ​

Let's check if the Arduino operates well at Elice!​

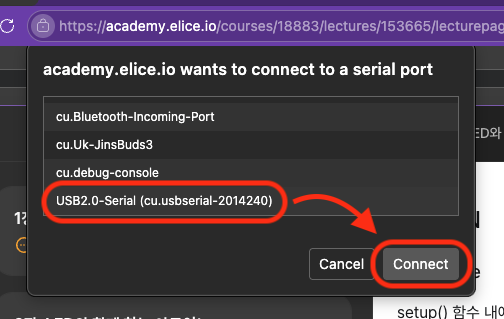

Please connect the computer to Arduino via USB. ​

Connect the computer to Arduino via USB. It will automatically connect to Elice like this. If it doesn’t connect, try refreshing the practice page (F5).

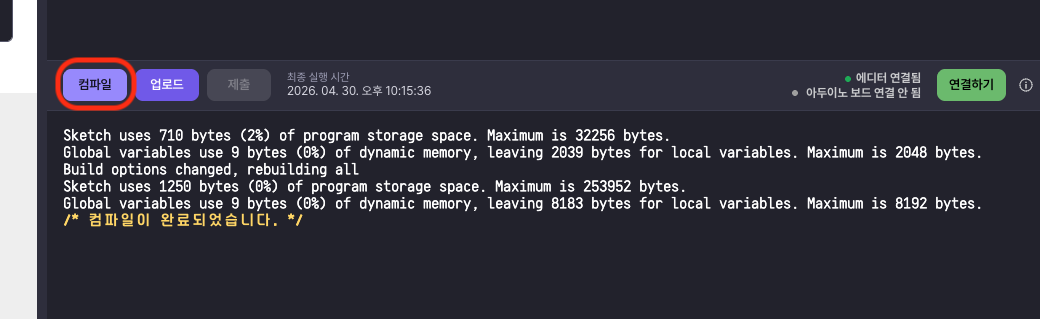

Please press the Run button. ​

By pressing the Run button, you can check if there are any issues with the code.

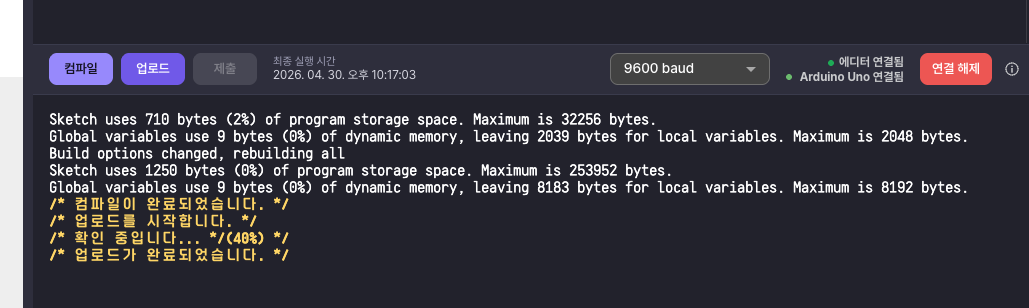

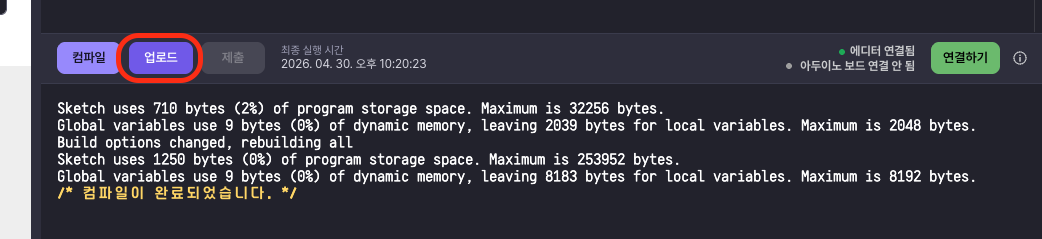

Please press the Upload button. ​

If there are no issues when you pressed the Run button, please press the Upload button! The Arduino will operate according to the code you’ve written.
